Smart Vision Lights

Standard Lights

Smart Vision Lights Standard Products feature high current LEDs and an intelligent driver in every light. With the built in intelligent driver, a separate driver is no longer needed for the machine light. This intelligent driver, also known as a smart driver, provides a constant current to every machine vision light.

Standard Lights

---

OverDrive Lights

OverDrive™ series of lights includes an integrated strobe driver for complete LED light control; there's no need for an external driver to control the light. The integrated intelligent driver monitors the strobe operation maximizing the lights output during inspections of the vision system.

• Highest power LED lights in the vision industry
• SafeStrobe technology ensures protected operation of LED’s, 5 times brighter than standard high current LED lights
• Precise current provides stable light intensity

OverDrive Lights

---

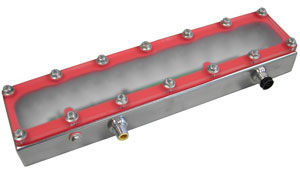

Washdown Lights

SVL washdown lights meet IP68 Standards, and are FDA compliant. Constructed of 316 stainless steel, these are designed to operate in food applications and are corrosion resistant.

• Diffuse Ring Lights
• Linear Lights
• Back Lights
• Brick Spot Lights
• Spot Lights

Washdown Lights

---

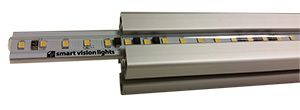

TSLOT Light Series

The TSLOT Series of linear lights are specifically designed to slide directly into the T-channel of products from the most popular extrusion manufacturers. These offer the ability to direct-connect up to 6 modules with lengths of 300mm to 1800mm, achievable in 300mm increments. Simple to mount and easy to use, the TSLOT lights are ideal for use in applications that include limited distance or tight areas such as control panels and areas with under-conveyor requirements.

• LED lighting slides into the extrusion; no extra mounting of additional lighting needed
• Low-voltage 24V DC keeps installation green
• Able to direct-connect up to 6 modules with one 24V power supply
• Homogenous, uniform LEDs are a cost and energy-saving replacement for fluorescent lighting

TSLOT Light Series

---

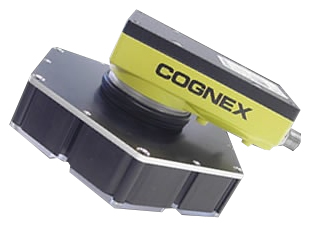

Cognex Series

The Cognex series of lights and camera to light cables makes adding proper illumination to your Cognex applications simple.

• Built in SMART Driver
• SafeStrobe technology ensures protected operations of LED's
• Direct mount ring lights
• Wiring for a Cognex In-Sight camera to a single light

Cognex Series

---

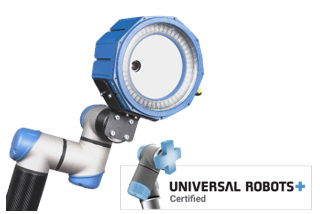

DoAll

The DoAll combines 6 machine vision lights into one easy-to- use multifunctional product; with each DoAll you get a dome light, a low angle dark field ring light, a mid angle dark field ring light, an RGBW ring light, a four quadrant ring light, and a NIR ring light.

From large scale automotive assembly to smaller electronic assembly and everything in between, the DoAll excels at performing multiple inspections where the ideal lighting varies by each inspection type. With its small footprint and integrated camera mount, the DoAll is the perfect fit for the compact spaces of robotic workcells.

DoAll

---
