Quickdraw

State-of-the-art Quickdraw Conveyor Systems are specially designed for use in automation processes. The patented, low profile, open center, slip roller design can easily be integrated with an endless array of systems.

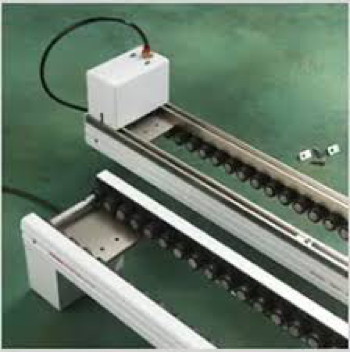

MR Series

Designed for factory automation, laboratory automation and robotic assembly, the MR Series features an open center, slip-roller design for accumulation, and precise product movement. These clean, quiet, compact, and ESD safe conveyors offer fixed or adjustable widths, two roller types (standard, and edge handling), two rail options (standard and T-Slot), and two drives (direct and belt driven), depending on your system requirements. These conveyors use a bi-directional, compact 24VDC brushless motor to drive each section that are both safe and easily integrated with existing control packages. The MR Series conveyor is designed to be compact and flexible for easy integration in work cells and assembly lines.

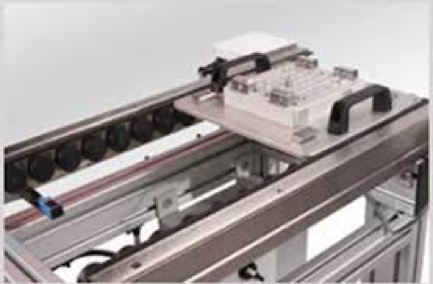

XR Series

The XR Series bridges the capacity gap between the Quickdraw MR Series and HD Series and is easily configured and integrated into new or existing production lines. Like all Quickdraw conveyors, the XR’s proprietary design is modular with clean, quiet and ESD safe operation. The XR also features bi-directional operation with an open center, slip-roller for accumulation, and precise product movements. These conveyors use a compact 24VDC brushless motor to drive each section that are both safe and easily integrated with existing control packages. Lengths are available in 1.5-inch increments (the roller pitch for this conveyor) up to 120 inches per conveyor section. The XR Series conveyor can be easily configured to fit a variety of applications.

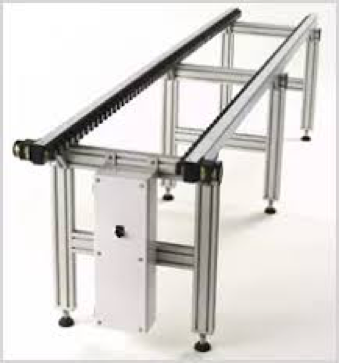

HD Series

The HD Series conveyors offers clean, quiet, modular and ESD safe operation for heavy-duty applications. The HD Series is available in a variety of motor and gearhead configurations in-order to meet a variety of load and speed requirements. These conveyors use a compact 24VDC brushless motor to drive each section that are both safe and easily integrated with existing control packages. Lengths are available in 2-inch increments (the roller pitch for this conveyor) up to 120 inches per conveyor section.

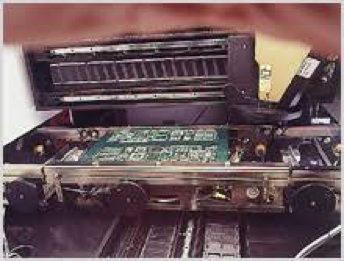

Edge-Belt Conveyors

Quickdraw’s Edge Belt Conveyors are specifically designed for transporting PCBs, flexible circuits, ceramic substrates, and micro plates. The Edge Belt conveyor is an ideal solution for electronic assembly and laboratory automation. These conveyors can be easily integrated with test, and inspection equipment.

Available in standard or custom designs and adjustable widths, these conveyors provide precise metering and locating of product to assure optimum performance. These conveyors use a compact 24VDC brushless motor to drive each section that are both safe and easily integrated with existing control packages. They are ESD safe and can be easily integrated with a variety of auxiliary devices.

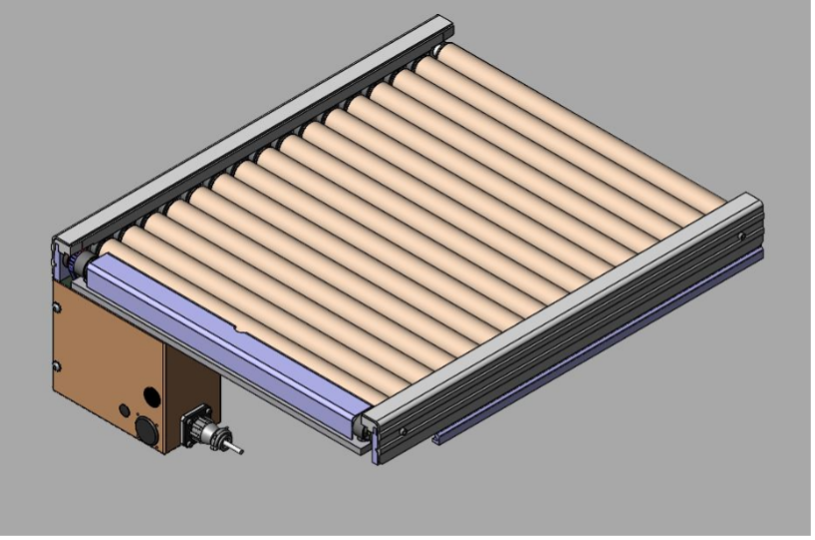

LR Series Conveyors

Designed to accept variable product sizes and random orientation of products, the LR Series features full width slip-rollers designed for accumulation, and precise product movement. These clean, quiet, and compact conveyors come in a variety of widths and offer low back pressure accumulation eliminating issues such as shingling, jamming, and other varied product damage. These conveyors use a compact 24VDC brushless motor to drive each section that are both safe and easily integrated with existing control packages.
