Epson

SCARA Robots

Epson SCARA Robots provide extreme Power of Choice with models from 175mm to 1000mm in length with Clean/ESD, IP54 or IP65 (dust or washdown) as well as, ceiling and tabletop models.

• T3 All-in-One SCARA Robots
• G1 Mini SCARA Robots
• G3 3rd generation of SCARA Robots
• G6 the workhorse of the G-Series
• G10 high speed and high payloads
• G20 20Kg payload and up to 1000mm reach
• GX4 4kg payload high-power-density robot
• GX8 8kg payload high-power-density robots
• GX4B fast production speeds and smooth motion control
• GX8B fast production speeds and smooth motion control
• GX10B High-power-density robots with leading-edge precision
• GX20B High-power-density robots with leading-edge precision
• LS6-B Longer reach models available as part of the value line
• LS10-B powerful performance, large payload, and great value
• LS20-B Longer reach models available as part of the value line
• RS3 working envelope that usually requires a robot twice the size
• RS4 work envelope area of an 100mm diameter circle

---

LS-B Series SCARA Robots

The Epson LS-B Series SCARA Robots were created as the low-cost, high-value, high-performance factory solution, and use a wide variety of low-cost technologies including the new RC90B Controller. Still packed with the outstanding performance, flexibility and reliability our users have come to expect, the LS-B Series SCARA Robots have everything ranging from high-performance motion control with PowerDrive Technology.

• LS6-B longer reach value line of SCARA Robots
• LS10-B 20Kg payload at a value price
• LS20-B powerful performance, large payload, and great value

---

GX Series SCARA Robots

A new class of high-power-density SCARA robots, the GX builds upon 40 years of expertise to deliver next-level performance and flexibility. Engineered to meet your unique automation needs, it offers multiple arm configurations and high throughput with heavy payloads to accomplish the most demanding tasks with leading-edge precision.

• GX4 4kg payload high-power-density robot
• GX8 8kg payload high-power-density robots
• GX4B fast production speeds and smooth motion control
• GX8B fast production speeds and smooth motion control
• GX10B High-power-density robots with leading-edge precision
• GX20B High-power-density robots with leading-edge precision

---

T-B Series SCARA Robots

Epson T-B Series SCARA robots are the ultimate slide alternative with a compact design, strong performance, and, most importantly, simple setup, installation and development. This innovative solution offers powerful features at an incredible value, making it an extraordinary value-without-compromise automation solution.

• T3-B All-in-One robot with a 400 mm reach and 3 kg payload
• T6-B All-in-One robot with a 600 mm reach and 6 kg payload

---

6-Axis Robots

Epson 6-Axis Robots offer high performance, high payloads and high precision in a slimeline body with compact wrist.

• C4 compact robot with 655mm horizontal reach and 855mm vertical reach
• C8 mid-sized 6-axis robot with 8Kg maximum payload
• C12XL compact, long-reach, high-payload
• Flexion N2 unique folding arm technology
• Flexion N6 features the world’s first folding-arm design, and offers the ultimate motion and workspace efficiency.
• VT6L all-in-one, low-cost robot with a 900mm reach.

---

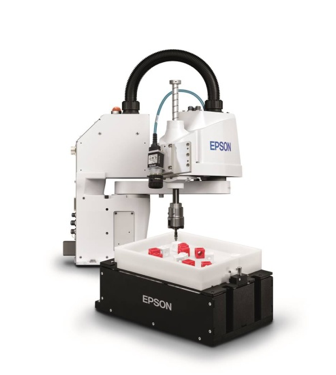

IntelliFlex Feeding System

Powered by Epson robots, IntelliFlex Software, and Vision Guide, the IntelliFlex is a simple feeding solution to accommodate a wide variety of parts. Integrated with Epson RC+ Development Software, the IntelliFlex Feeding System offers easy setup and configuration. Its point-and-click interface helps reduce the typical development time required for advanced applications. The feeder accommodates part sizes ranging from 5 to 40 mm, while intelligent auto-tuning offers fast setup for flexible parts changeover. And, multi-axis vibration technology provides optimized parts control and singulation.

Epson IntelliFlex Feeding System

---

Controllers and Integrated Options

With a multi-tiered controller offering, Epson gives our customers the Power of Choice to select the right product for the job. Epson Vision Guide software leads the industry in ease of use with a point and click development environment filled with high performance vision tools.

• RC90 powerful yet inexpensive controller for LS Series SCARA Robots
• RC700A Workcell controller is next generation in Epson PC based controls
• CV1 Vision Guidance easy to learn and use
• CV2 Vision Guidance high performance with up to 8x the speed of CV1

---

RC+ Express

Experience how simple and fast robot automation can be with Epson RC+ Express- a no-code, easy-to-use robot teaching environment. An intuitive software development environment for Epson T-Series All-in-One SCARA robots and LS-B Series SCARA robots, Epson RC+ Express features an easy-to-learn, block-style robot teaching environment to get users up and running fast. Start creating simple applications quickly — like pick-and-place, palletizing and depalletizing — using convenient, premade templates. Ideal for new users with little to no coding experience.

RC+ Express

---

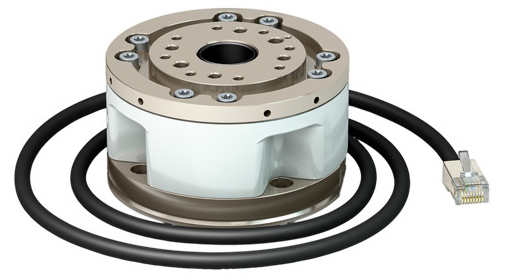

Epson Force Guide

Epson’s high-performance Force Guide takes robot automation to the next level with superior precision and outstanding rigidity. Powered by proprietary Epson Quartz Technology, it enables Epson robots to detect six axes of force with precision down to 0.1 N. Driven by real-time servo system integration, Force Guide delivers fast, tactile feedback to guide robots for high-precision parts placement. Easy to configure and set up, Force Guide features a point-and-click interface with pre-configured solutions and built-in objects, reducing the development time for precision repeatability applications.

Epson Force Guide

---
