LMI Technologies

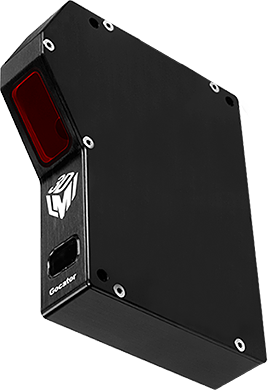

Gocator 1300 Series

For distance and dimensional measurement

The Gocator 1300 Series is an all-in-one 3D smart displacement sensor. The next generation of high speed (32 kHz) distance measuring devices. Compact and lightweight, Gocator 1300 Series laser point profile 3D smart sensors are simple to network and integrate, and ready to scan, measure and control out of the box.

• Pre-calibrated and ready to measure
• Scalable to a synchronized multiple sensor network
• Small footprint

Gocator 1300 Series

---

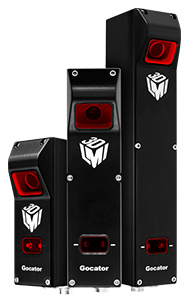

Gocator 2100 Series

Low Cost, Entry-Level Line Profilers for Basic Inline 3D Inspection

The Gocator 2100 Series of laser line profiler 3D smart sensors is an easy-to-use scanning and inspection solution which is also cost-effective. The Gocator 2100 Series empowers factories to improve efficiencies in product validation by leveraging the value of 3D measurement at a competitive cost to traditional 2D solutions.

• Handles all of your basic quality inspection needs
• VGA imager. 640 points per profile resolution
• Field-of-view up to 1260 mm
• Measurement range up to 800 mm

Gocator 2100 Series

---

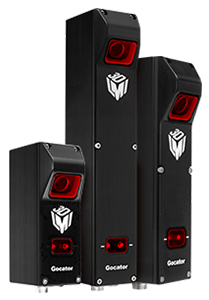

Gocator 2300 Series

Workhorse Line Profilers for Robust Inline 3D Inspection

The Gocator 2300 series of workhorse 3D laser line profile sensors are designed for the demanding industrial conditions of the factory floor. Gocator’s simple and flexible design enables factories to reduce costs and maximize profitability by improving efficiencies in product validation. The Gocator 2300 series comes in five standard models but can also be customized to suit specific factory automation requirements.

• Handles a wide range of high-speed, high-volume applications
• Megapixel imager. 1280 points per profile resolution
• Field-of-view up to 1260 mm
• Measurement range up to 800 mm

Gocator 2300 Series

---

Gocator 2400 Series

Ultra High-Resolution Line Profilers for Advanced Inline 3D Inspection

Gocator 2400 laser line profile sensors are designed for 100% inspection of challenging targets, such as micro-features on small electronic parts, and dark materials such as tire tread/sidewall and rubber sheets in high-speed inline applications.

• Handles difficult targets such as micro-features on electronics small parts in high-speed applications
• 2-Megapixel imager. Up to 1940 points per profile resolution
• Field-of-view (FOV) up to 194 mm
• Measurement range up to 210 mm

Gocator 2400 Series

---

Gocator 2600 Series

LMI Gocator 2610 and 2618 models deliver the highest resolutions in the Gocator 2600 4K+ laser profiler series. Custom optics and a powerful 9-megapixel imager deliver 4192 data points per profile for high-resolution 3D scanning and inspection of microscopic features and small parts in precision manufacturing applications such as Consumer Electronics (CE), EV Battery, and Semiconductor production.

• Up to 2.5 micron X resolution
• Up to 0.2 micron Z-repeatability
• On-sensor measurement tool measurement tools and I/O connectivity

Gocator 2600 Series

---

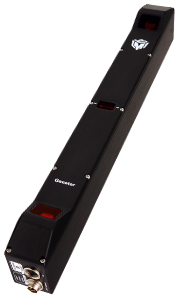

Gocator 2800 Series

Dual Triangulation Line Profilers for 3D Inspection of Large Objects

The Gocator 2880 smart sensor is built to thrive in the demanding industrial conditions of the factory floor. Gocator’s simple and flexible design enables factories to reduce operational cost and maximize profitability by significantly improving efficiencies in product validation. With its built-in dual cameras, the 2880 can rapidly generate complete scans of large objects with complicated shapes.

• Two cameras maximize scan coverage and minimize occlusions for applications such as primary log scanning
• 1280 points per profile resolution
• Field-of-view up to 1260 mm
• Measurement range up to 800 mm

Gocator 2800 Series

---

Gocator 3200 Series



Large Field of View 3D Snapshot Sensor

Gocator 3200 provides a large field of view and measurement range, letting you perform quality inspection on multiple features with a single snapshot. The all-in-one smart snapshot sensor offers high resolution for accurate measurements down to 35 μm* using a stereo camera and an industrial projector to deliver long lifetime and uniform lighting throughout the measurement volume.

• Metrology-grade 35 μm sensor for detecting features on large objects such as automotive cylinders
• Fast scan rate (4 Hz full-field)
• 2-megapixel stereo camera minimizes occlusions
• Wide field of view (FOV) up to 154 mm
• Pick-and-place friendly for robotic/stationary inspection applications

Gocator 3200 Series

---

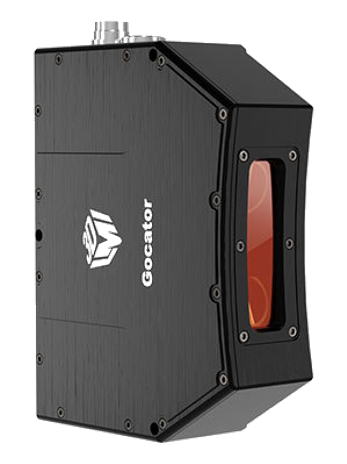

Gocator 3500 Series



High-Resolution Snapshot Sensors

Gocator 3500 high-resolution structured light 3D snapshot sensors bring metrology-grade performance to the inline factory environment. This series boasts a fast scan rate (6 Hz with PC or GoMax accelerator), and a 5-megapixel stereo camera that minimizes occlusions. Now you can have up to a 282 x 175 mm field of view (FOV), pick-and-place friendly for robotic/stationary inspection applications.

• Gocator 3506 for inline 3D inspection of small parts
• Gocator 3520 high resolution 3D snapshot sensor with extended FOV

---

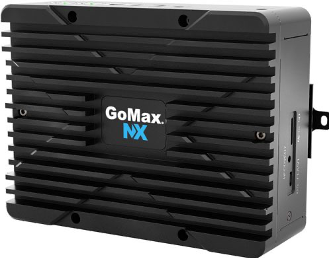

Smart Vision Accelerator Gocator GoMax NX

LMI GoMax NX is a high-performance embedded device that allows users to accelerate any Gocator sensor or multi-sensor network in heavy-duty inspection applications that require increased data processing power.

• Easy to set up, power, and run using the Gocator web browser interface
• Add GPU-accelerated data processing power to Gocator 3D laser profilers and snapshot sensors
• Simultaneously accelerate Gocator multi-sensor networks
• Add multiple GoMax NX units to scale up sensor network acceleration
• Plug and play for easy sensor acceleration
• GPU-accelerated data processing without an industrial PC

GoMax NX

---

Test Drive a Sensor





Choose from the “scenarios” listed for an authentic Gocator experience- right from your desktop, without a physical sensor. Each scenario includes real 3D scan data and built-in measurement tools for you to explore.

Test Drive a Sensor

---





Meet the Gocator Family - 3D Sensors for Factory Automation

---
